AUTOTUNE™ for Harris Radios

Working closely with Harris engineers, Freedom continues to develop the most comprehensive test support available for Harris radios.

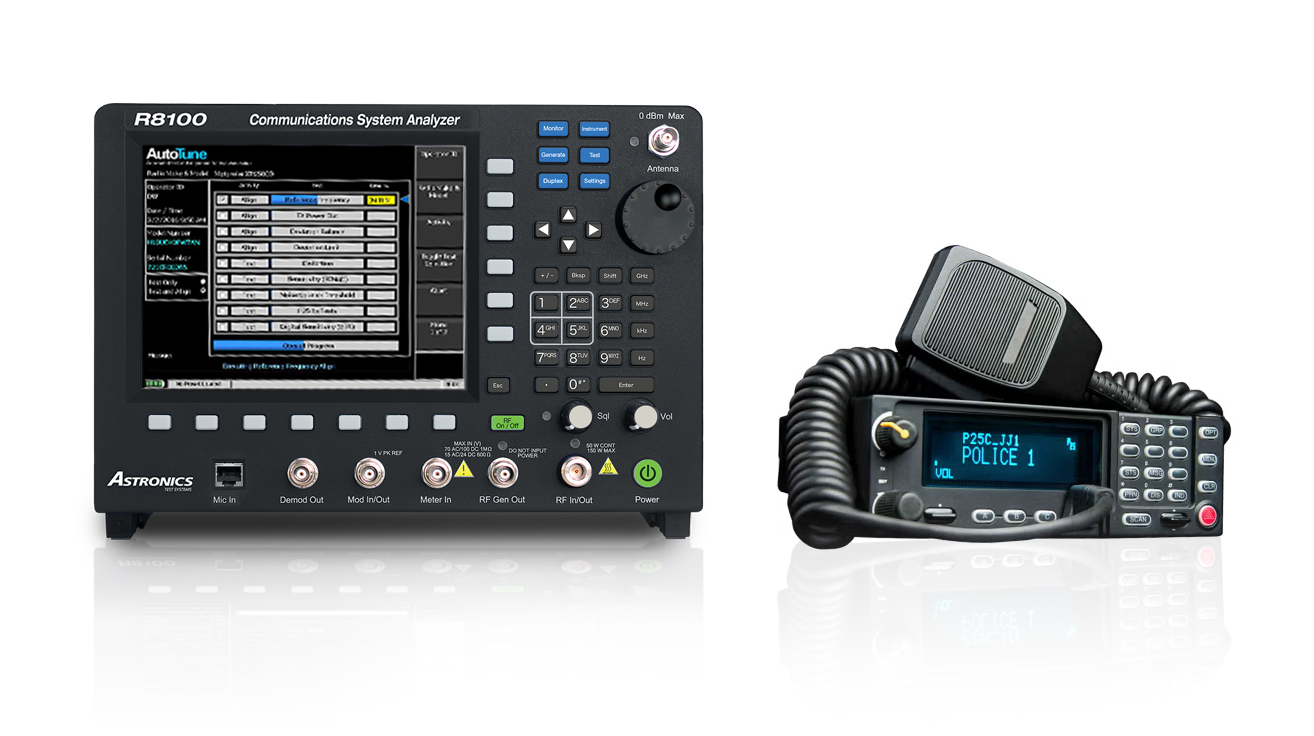

With the R8000 and R8100 you can automatically test and align your Harris radios in a fraction of the time it takes to perform the test manually. Our Harris AutoTune™ option is the ideal solution for formal preventative maintenance programs or any sizable radio fleets that must be regularly maintained.

Our AutoTune option performs all recommended factory test and alignment procedures for every major radio manufacturer in a fraction of the time needed to perform them manually. Just select your radio model and connect as shown on the unit, choose the tests and alignments you wish to perform, then enter your operator ID and press the “start button.”

Harris XL-200P

R8-AT_XL200

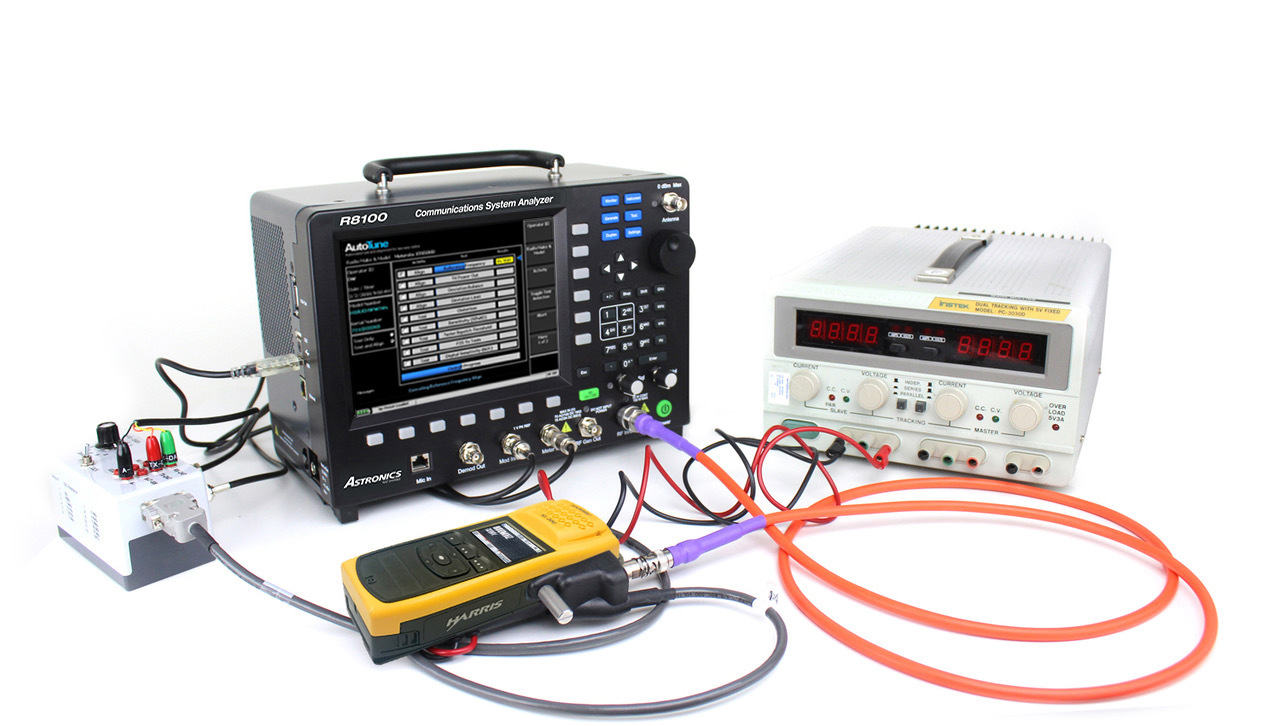

XL-200P models are the latest innovation from Harris offering a blend of LMR and LTE technologies in a P25 portable package. AutoTune provides complete Harris-specified XL-200P field servicing, including analog and digital P25 testing, all while using standard Harris accessories. Keep your XL-200s performing as they were designed in less time with AutoTune.

·TCXO Frequency ·Align & Test
·TX Power Test
·TX CTCSS/CDCSS Modulation and Composite Deviation Test
·P25 Phase 1 TX Modulation Fidelity (C4FM) Test
·P25 Phase 1 TX Deviation (C4FM) Test
·P25 Phase 1 RX Sensitivity (C4FM) Test
·P25 Phase 2 RX Sensitivity (TDMA) Test
·RSSI Test

Harris XG-100M

R8-AT_XM100

Harris Unity XG-100M line of multi-band P25 radios have served in many capacities including military, state law enforcement, and forestry

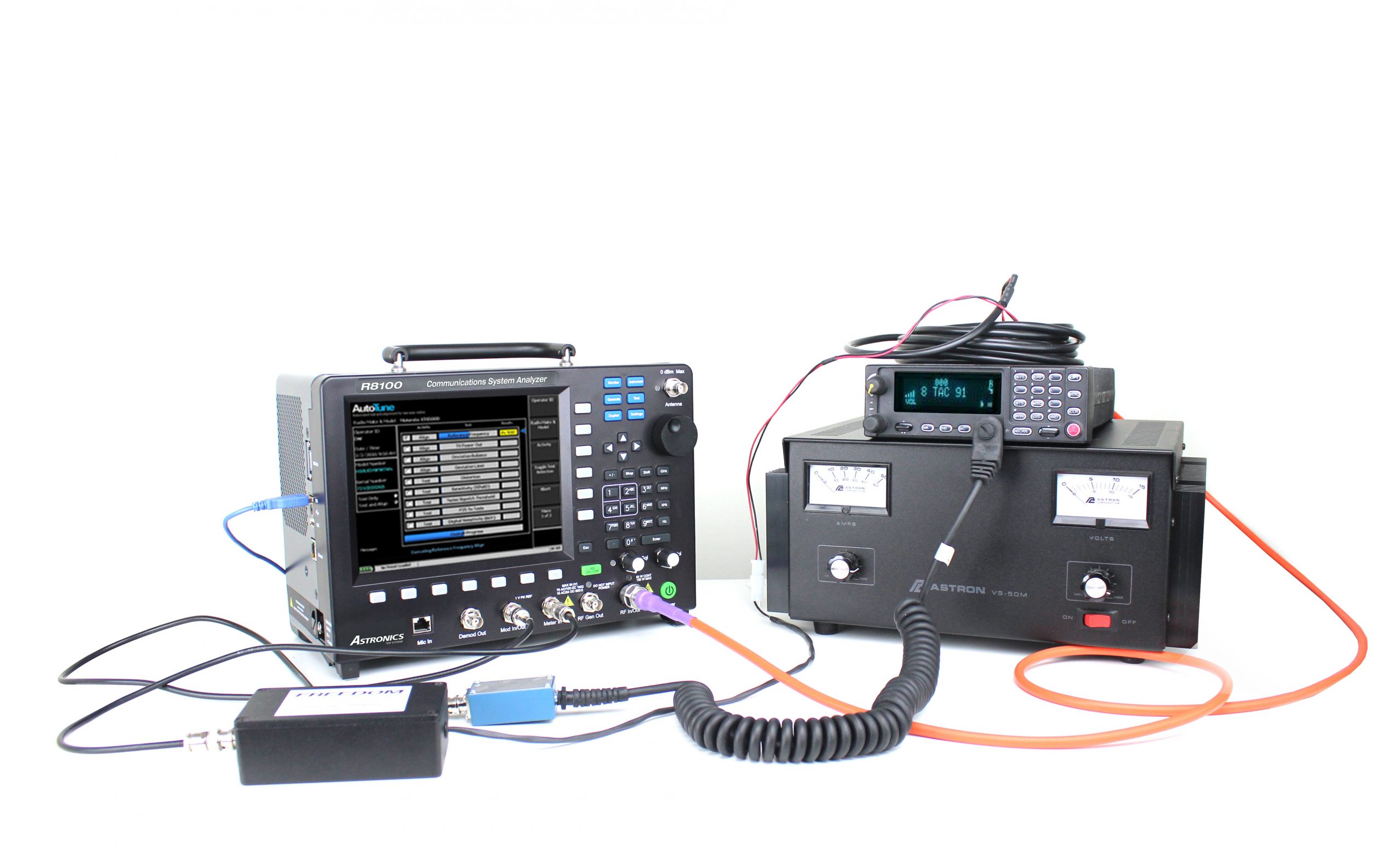

industries, to name several. AutoTune performs Harris- specified maintenance testing on these models, ensuring proper operation. FREEDOM offers additional custom accessories for interfacing the XG-100M to the analyzer for measurements, making servicing these models easier than ever.

·TCXO Frequency
·TX Power
·Tx Analog Modulation
·Tx CTCSS/CDCSS Modulation and Composite Deviation
·P25 Phase 1 Tx Modulation (C4FM) Test
·Tx P25 Phase 2 Tx Modulation (TDMA) Test
·Rx Audio Level and Distortion
·RX Sensitivity (SINAD)
·P25 Phase 1 Rx Sensitivity (C4FM) Test
·P25 Phase 2 Rx Sensitivity (TDMA) Test



Harris XG-75 & MOBILE

R8-AT_XG75

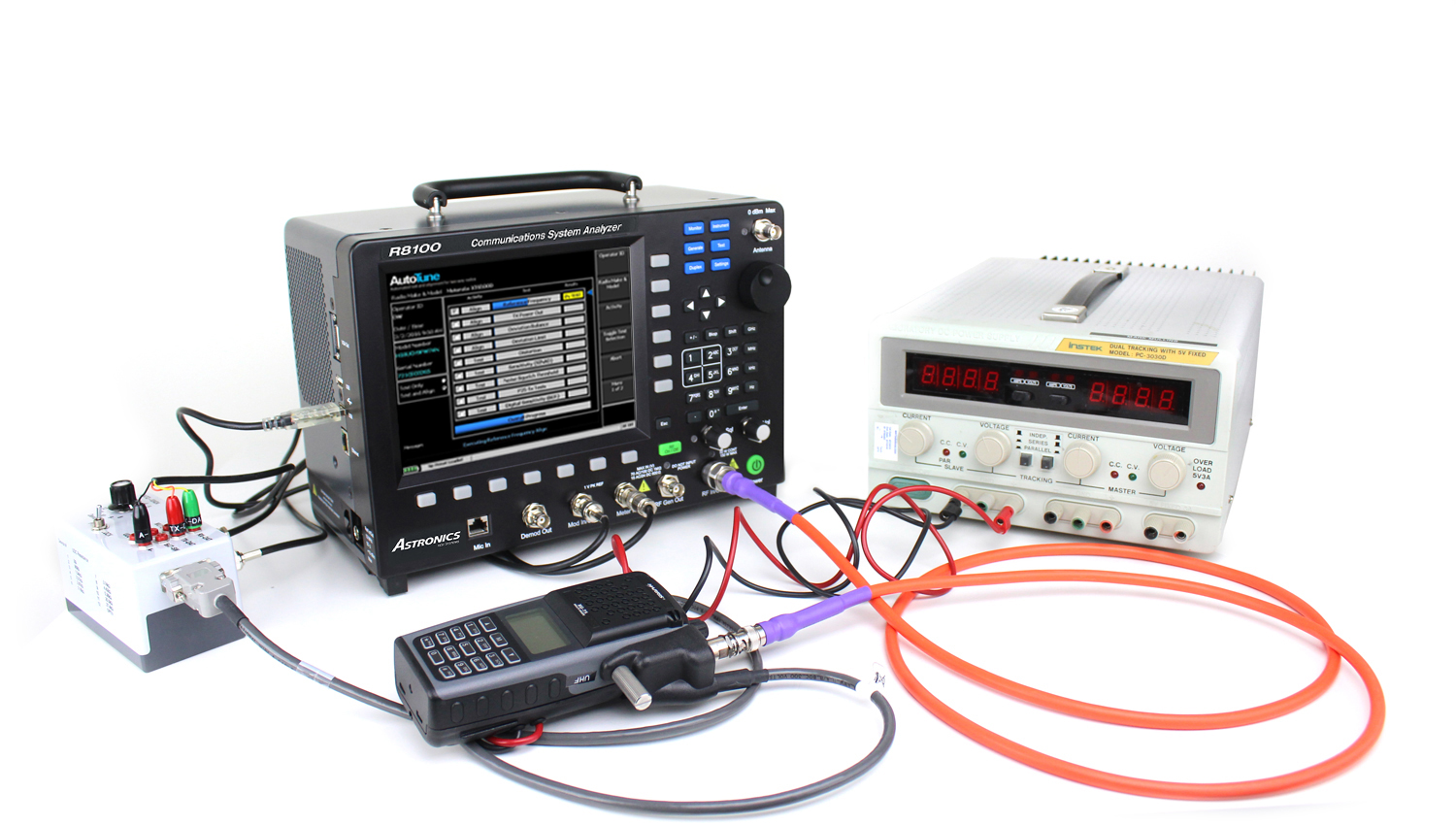

Harris XG-75 series of radios are relied upon by first responders and businesses alike for a wide variety of communication needs. In additional to an extensive analog test and alignment suite, AutoTune support for these Harris models includes complete P25 Phase I and Phase II testing, ensuring your radios operate well on the latest digital P25 networks. Available Harris XG-75 AutoTune accessories make this servicing feature a true turn-key solution.

Portable Radios

·Reference ·Oscillator Align & Test
·TX Power Align & Test
·FM Deviation Test
·Channel Guard Deviation and DCG Scalar Test
·C4FM Deviation Test
·P25 Phase 1 Tx Modulation (C4FM) Test
·P25 Phase 2 Tx Modulation (TDMA) Test
·TX Audio Sensitivity and Distortion Test
·Rx Audio Level and Distortion Test
·Squelch Open and Close Align & Test
·RSSI Align and Test
·RX Sensitivity (SINAD) Test
·P25 Phase 1 Rx Sensitivity (C4FM) Test
·P25 Phase 2 Rx Sensitivity (TDMA) Test
·Rx IF Bandwidth – Signal Displacement Bandwidth Test

Mobile Radios

·Reference ·Oscillator Align & Test
·TX Power Align & Test
·TX Modulation Limit Test
·P25 Phase 1 Tx Modulation (C4FM) Test
·P25 Phase 2 Tx Modulation (TDMA) Test
·Rx Audio Level and Distortion Test
·RSSI Align & Test
·RX Sensitivity (SINAD) Test
·Squelch Open and Close Align & Test
·P25 Phase 1 Rx Sensitivity (C4FM) Test
·P25 Phase 2 Rx Sensitivity (TDMA) Test

User Guides

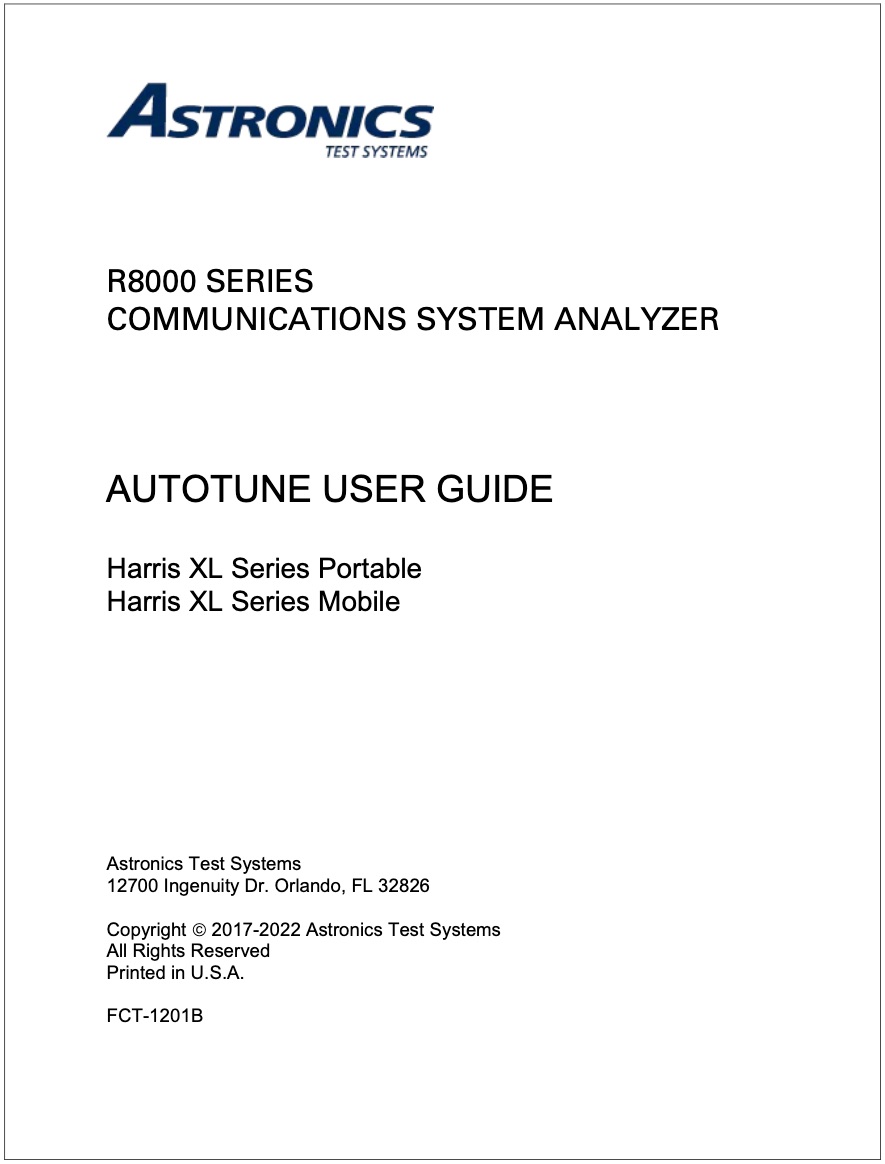

Harris XL-200 Portable

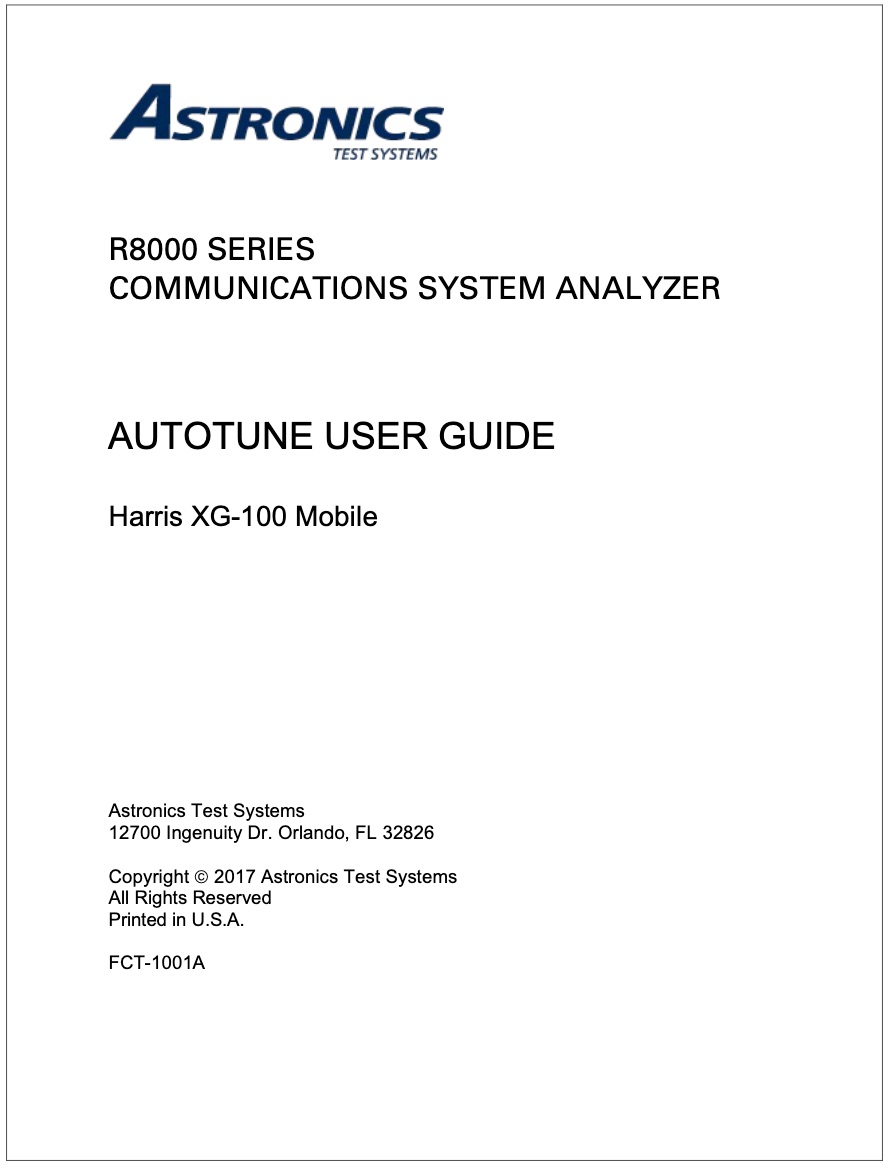

Harris XG-100 Mobile

Harris XG-75
